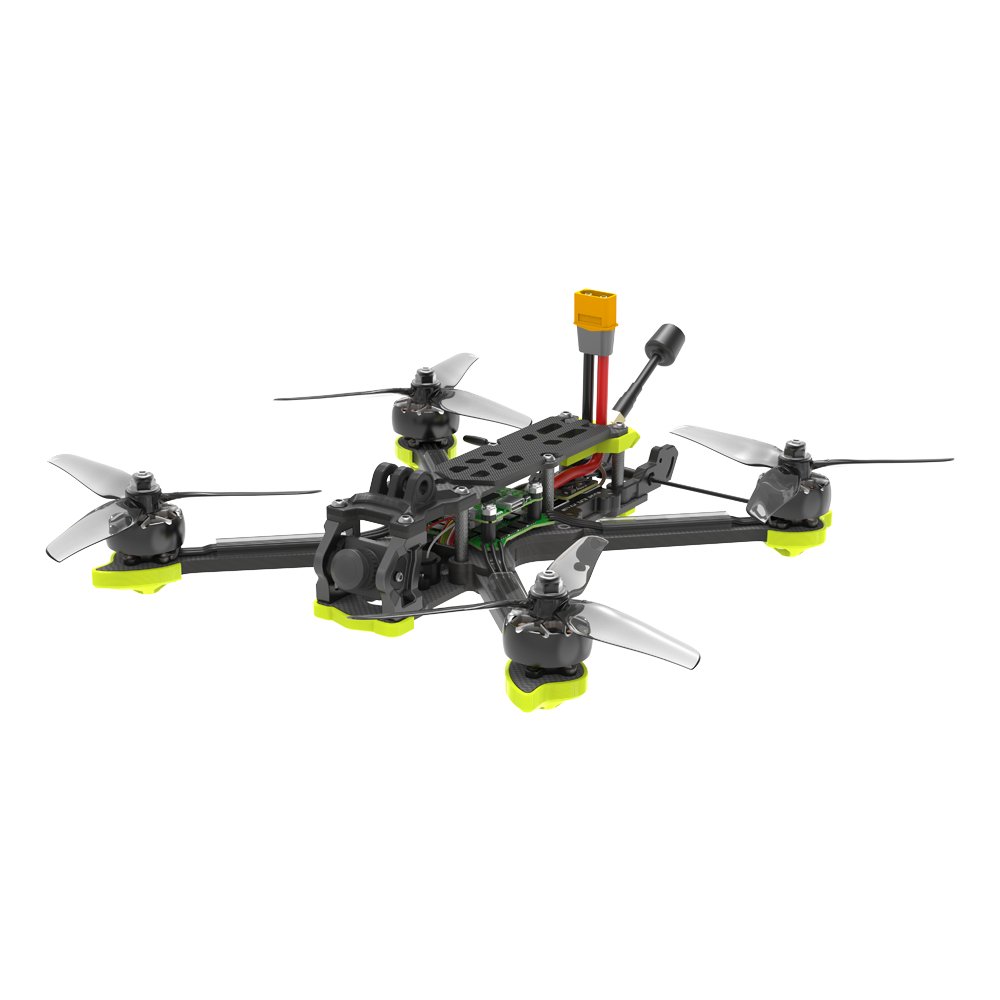

iFlight Nazgul5 V3 - 240mm 5 Inch 6S Freestyle FPV Racing Drone with RaceCam R1, BLITZ F7, E45S 45A ESC & 2207 1800KV Motor - Perfect for BNF/PNP Enthusiasts

Jelenlegi ár 164.500 Ft
Eredeti ár 212.700 Ft
Eredeti ár 210.600 Ft - Eredeti ár 234.900 Ft
Eredeti ár 212.700 Ft
155.600 Ft - 172.200 Ft
Jelenlegi ár 164.500 Ft
  Ingyenes 3-8 Nap Nyomon követett kézbesítés     Könnyű 30 napos visszatérítés
Elérhetőség:
raktáron
Elérhetőség:
Nincs raktáron
Elérhetőség:
raktáron
Elérhetőség:
raktáron
Receiver: ELRS 2.4GHz

Kiszállítás és kézbesítés

Általában 24 órán belül kiszállításra kerül.
Ingyenes 3-8 munkanap EU-s nyomon követett kézbesítés.

Visszatér

Ez a termék megfelel a 30 napos visszaküldési szabályzatunknak.

PayPal Icon
Mastercard Icon
Visa Icon
Apple Pay Icon
Shop Pay Icon
Google Pay Icon
Amex Icon
Klarna Icon

Termékleírás:

Introducing the Nazgul5 V2 FPV Racing Drone

Experience the thrill of first-person view (FPV) racing with the Nazgul5 V2, an upgraded 5" bind-and-fly quadcopter that offers extraordinary power and smooth flights. This high-performance drone comes pre-tuned and set up, so all you need to do is bind and fly! The Nazgul5 V2 features XING-E motors, a durable frame design, and compatibility with GoPro and DJI Action cameras, making it perfect for both racing and freestyle adventures.

Key Features and Improvements

The Nazgul5 V2 comes with several impressive features and upgrades from the previous version:

  • BLITZ 1.6W VTX: Higher power and stronger anti-interference make for better performance.
  • CNC Aluminum Alloy Lens Bracket: Lightweight and durable, ensuring your camera stays safe during flights.
  • Upgraded Frame Design: Made from lightweight, high-hardness carbon fiber, the frame is more resistant to impacts and explosions.
  • Low Center of Gravity: Stabilizes the drone during flight and makes freestyling easier.
  • Spark-Prevention Module: Prevents sparks caused by plugging in the battery, extending the life of the battery plug.
  • Camera Compatibility: Designed for use with GoPro5/6/7/8/9/10/11 and DJI Action cameras (not included).

Specifications

With its upgraded components and features, the Nazgul5 V2 is a formidable drone for FPV racing enthusiasts:

  • Flight Stack: BLITZ F7 & BLITZ E45S 45A
  • Motors: XING-E 2207 1800KV 6S Brushless Motor
  • Wheelbase: 240mm x 240mm
  • Body Size: 170mm x 170mm
  • Propeller Size: 5 inch / 5.1 inch
  • Flight Controller Pattern: 30.5mm x 30.5mm / 20mm x 20mm
  • FPV Camera Spacing: 19mm
  • Weight: 393.4g (without battery)

Package Contents

The Nazgul5 V2 FPV Racing Drone package includes everything you need to get started:

  • 1x Nazgul5 V2 240mm 5 Inch 6S FPV Racing Drone
  • 1x RaceCam R1, 2.1mm lens 19x19mm camera
  • 1x Albatross RHCP SMA 5.8g antenna
  • 2 sets of Nazgul 5 inch 3-blades (color may vary)
  • 1x 20x200mm Microfiber PU Leather Battery Strap (color may vary)
  • 1x 20x250mm Microfiber PU Leather Battery Strap (color may vary)

Recommended Additional Gear (Not Included)

  • Battery: 6S 1300mAh
  • Camera Mount for GoPro

Factory Setup and Wiring Diagrams

The Nazgul5 V2 comes pre-built with all necessary parameters. Should you need to restore your drone to its factory settings, you can find all factory dumps and wiring diagrams on our Google Drive: LINK

Product Specifications

V2 Version new V3 Version

Nagul5 v2 frame Kit

Wheelbase: 240mm*240mm
Body size: 170*170mm

Nagula5 v3 frame kit

Wheelbase: 245士2mm

Size: 173*173*37 士2mm

SucceX Force 5.8g 800mW VTX Adjustable

- Item: SucceX-Force 800mW adjustable VTX
- Output voltage/ Max current: 5V 1A
- 12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@200mW,250mA@500mW, 380mA@800mW
- Output 48 frequency points,
- size:36*36*3mm
- PIT/25mW/200mW/400mW/800mW

BLITZ 1.6W VTX

Input voltage: 7V~36V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5x30.5mm/Φ3
Lightweight: 18.9g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25/400/800/1600mW

BLITZ F7 Flight Controller

( Separate FC Link)

MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g

BLITZ E45S 4in1 ESC

( separate ESC Version to know more details )

Input oltage: 2-6S
Firmware: QH-40 16.7
Continuous current: 45A
Instantaneous current: 55A
MCU:BB21
Current sensor: yes scale 200
Drive signal support: DShot150/300/600MultiShot.OneShot
Weight: 15g

XING-E Pro 2207 1800KV 6S Brushless Motor

( Separate Motor click here)

KV: 1800KV
Input Voltage: 3-6S
Configuration: 12N14P
Stator Diameter: 22mm
Stator Length: 7mm
Shaft Diameter: 5mm
Motor Dimension: 28.5x19.7mm (Dia*Len)
Weight: 33.8g
Idle Current(10) @10V: less than 1.2A
Max. Con. Power (180S): 845.3W
Internal Resistance: 81.5mΩ
Max. Current (180S): 35.22A
